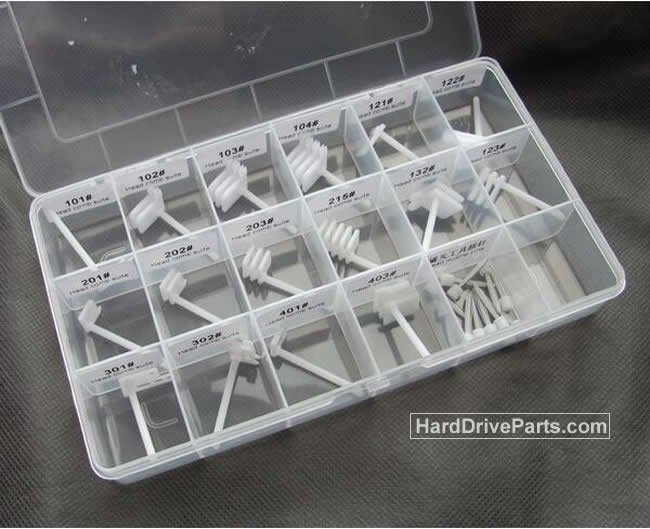

Hard Drive Head Replacement Comb Suite

When it's confirmed to be head damage or other hard drive physical damages which require you to perform the head replacement, Hard Drive Head Replacement Comb Suite is to ensure the correct and successful operation of head replacement.

Change swap repair magnetic head, support full series thin disk of Seagate and other head inside dock hard disk of Western Digital, Maxtor, Samsung, Hitachi and etc. Easy to use.

This "heads Tools utility is very strong, compared with the previously listed head tool is more practical to support a wider range, more intimate. Fully take into account the type of computer, hard disk type, disc number of the number of heads, heads, berthing area (outside landing within the landing) and other factors, a unique fixing holes, pins, sockets and other personalized design not only completely fixed head also will help guide the head safely and easily in and out of the disk area or parked frame, so that the "head" maximize the safe operation and seismic capacity is also simultaneously strengthened. "Head tool with data recovery in good synchronization as well as the physical head separated" consistency ".

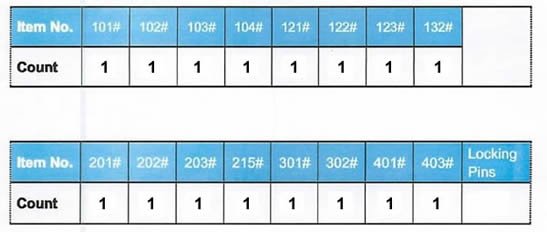

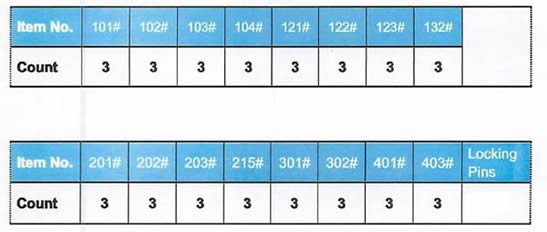

Packing Lists

Support Lists

• Above 16 tools probably applies to 55 hard disks;
• 101# 102# 103# 104# 121# 122# 123# 132# support "inner parked" 3.5 inch hard disk;
• 201# 202# 203# 215# support "outer parked" 3.5 inch hard disk;
• 301#302# 304# supports the "outer parked" 2.5 inch hard disk;
• 401# 403# supports the "outer parked" 3.5 inch "thick disk"hard disk;
• A lot of hard disk is not listed, but you can choose the most suitable matching operation "tools" from these tools;

Before you can use new head comb suite very well, you need to have some experience of head replacement or have used familiar head replacement products or you need more practice on the toolkit;
